Digital Ultrasonic Plastic Welding Machines

Price 150000 INR/ Unit

Get a Price/Quote

Digital Ultrasonic Plastic Welding Machines Specification

Condition
New

Efficiency
High

Function
Semi Automatic

Cooling Method
Air Cooling

Usage
Industrial

Digital Ultrasonic Plastic Welding Machines Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
50 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Digital Ultrasonic Plastic Welding Machines

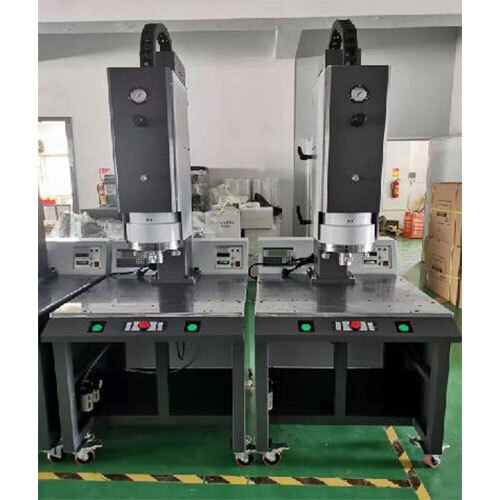

The DK.2020D 20Khz Digital Ultrasonic Plastic Welding Machine is a semi-automatic industrial machine that offers high efficiency in plastic welding. With a cooling method of air cooling, this new machine is designed for seamless operation in industrial settings. The advanced digital technology ensures precision and accuracy in the welding process, making it suitable for a wide range of plastic welding applications.

Features:-ï

US IGBT controlled System from USA based brand technology used.
Automatic scanning of horn & Frequency tuning when power on ultrasonic system. Displays frequency on screen/HMI.
Auto Frequency tuning and display for each weld.
Modes - scan on machine start, Horn change scan before each weld, scan in preset mode
Welding modes - Time mode, Energy mode, ground detect mode (for Digital series) can select as part profile and mold quality to minimize weld issues.
Double Oscillation use - Can set to impart Oscillation two times per weld to get perfect weld and reduce part rejection, HMI model Auto-self-protection starts when overloading or when the horn is out of system frequency range. Frequency over range and Ultrasonic over load.
Ultrasonic system is digital numeric controlled, ultrasonic system parameters are displayed on screen/HMI.
Automatic counter shows the welding quantity on HMI which can be reset to zero.
Good Weld/Bad weld display for last 60 weld memory and to each weld on HMI models, as per parameters and mold selected.ï
Parameters Time Mode Weld time, Delay time, Hold time, Pressure and weld depth setï Energy Mode - Energy set 10%,20%...60%...90% etc, Delay time, Hold time, Pressure and weld depth set. Twiceï Oscillation possible.
On line power out put signal, on line frequency signal, over load fault alarm/signal (on HMI)
Power Suppler: 220V, ACï¼Œ1Pï¼Œ50/60Hz/ 380V 3p/ 50Hz. Stabilized with 1%ï ïtolerance. 10A/12A/15A.
Ultrasonic System: 2600 W/15KHz,ï
Auto-tuning range: -/+300Hz;
Amplitude Adjustment: 50-100%.
Air Supplyï¼š0-8KG/cm2; depends on product, Dry and dust particles free.
Horn Level adjustment screws in body.
Alloy steel booster and NTK Japanese Piezo transducer.
Strong column base and stable quality.
Work table size for table topï 425W x 630D x920H mm. Work table size with Work tableï 750W x 850D x 1750H mm
Weight - approx. 90/110/300Kg depends on model.
Specifications are subject to change for improvement.
Short summery of featuresï Multi working mode, Auto tuning, Out put adjustable, Twice Oscillation, System protection.ï

DIGITAL ULTRASONIC PLASTIC WELDING MACHINE MODEL					ï
MACHINE MODEL	MACHINE FREQUENCY	MACHINE WATTAGES	AIR SUPPLY	POWER SUPPLY	ï PRICE
DK.2010D	20KHz	1000 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	2,90,000
DK.2015D	20KHz	1500 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	3,10,000
DK.2020D	20KHz	2000 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	3,25,000
DK.1522D	15KHz	2200 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	3,50,000
DK.1526D	15KHz	2600 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	3,80,000
DK.1532D	15KHz	3200 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	5,50,000
DK.1542D	15KHz	4200 W	3-6 Kg.	1 Ph. 220V , +/-1V. / 50-60Hz	7,25,000
